Get to work…
that’s it

A fast, modern CAD platform built for surveyors — bearings and distances, traverse adjustment, points, surfaces, and plottable sheets.

Download for Windows Read the manual

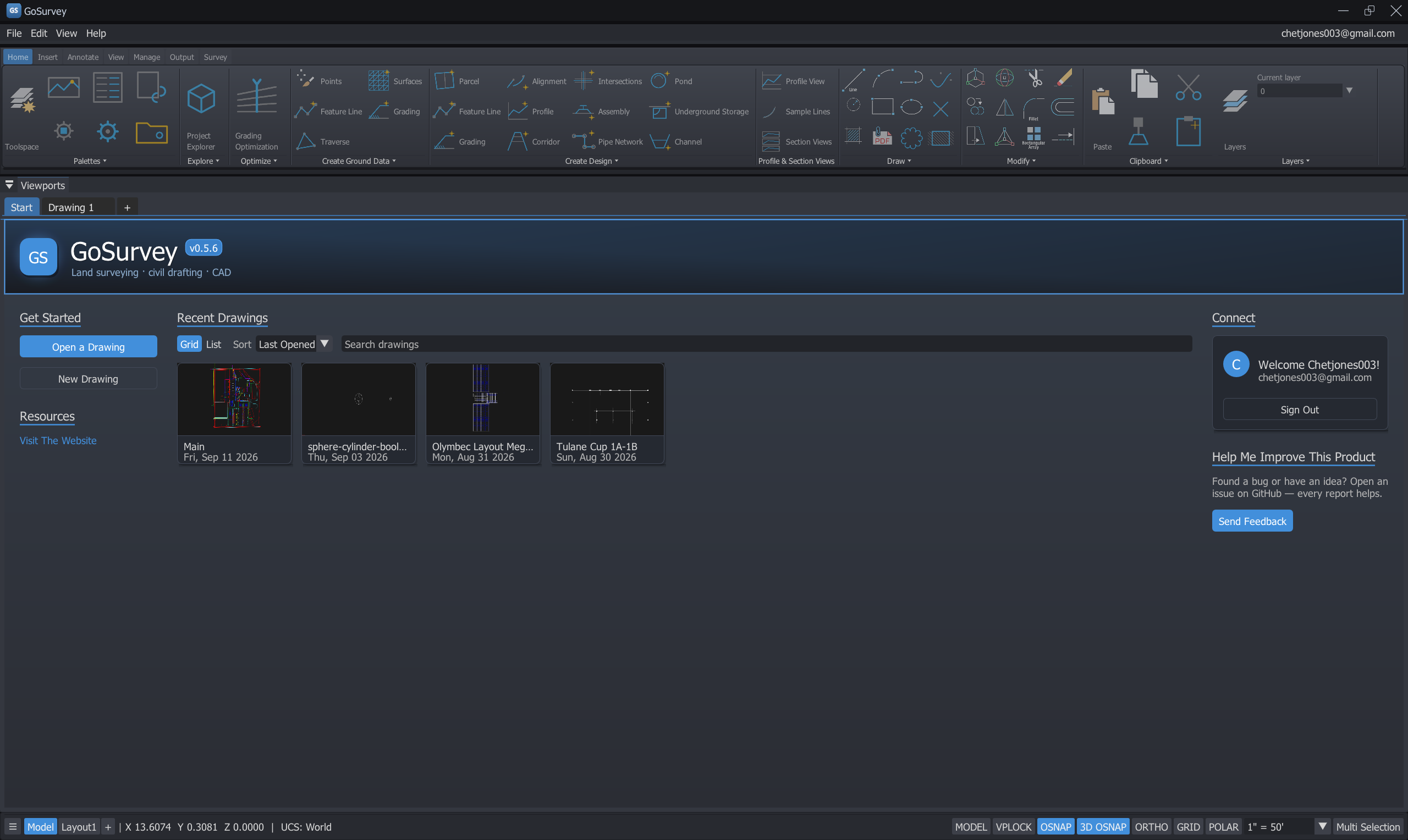

The GoSurvey start screen with recent drawings, the ribbon, and the status bar. — The start screen — recent drawings, ribbon, and status bar.

Key features

Projects, maps, PDFs, clouds, piping, and 3D — built for the whole job.

Six highlights from What’s New 0.7.0 — swipe, arrow keys, or the controls below.

Projects

One place for every drawing, point file, PDF, and cloud on the job — shared survey points across tabs, pack when ready to send.

Shared survey point database across project drawings
Recent Projects on the start screen
Pack and email the whole project

Coordinate systems and maps

Real survey zones, USGS aerial under your linework, and captured map areas that stay with the file.

Coordinate system for the project or drawing
USGS aerial underlay aligned to your zone
Capture map areas into the drawing

Built-in PDF viewer

Open plan sheets in GoSurvey — markup, measure, compare revisions, split pages.

PDFVIEW in a dedicated, dockable window
Annotate, measure, and highlight changes
Attach PDFs to a project

Point clouds

Attach scan and LIDAR data beside your linework for context and as-built checks.

E57 and other formats; density, color, clipping
Clearance and as-built comparison
Cloud paths tracked when you pack a job

Piping and fittings

Route pipe runs with library fittings and export geometry with your drawing.

PIPERUN with size and elevation
Fittings from the built-in library
Move and copy runs like other objects

Surfaces, grading, and 3D

TIN surfaces, drape linework, grade to daylight, pads and solids on real ground.

TIN surfaces, volumes, contours, styles
DRAPE and PADSOLID for pads
GRADING side slopes to daylight

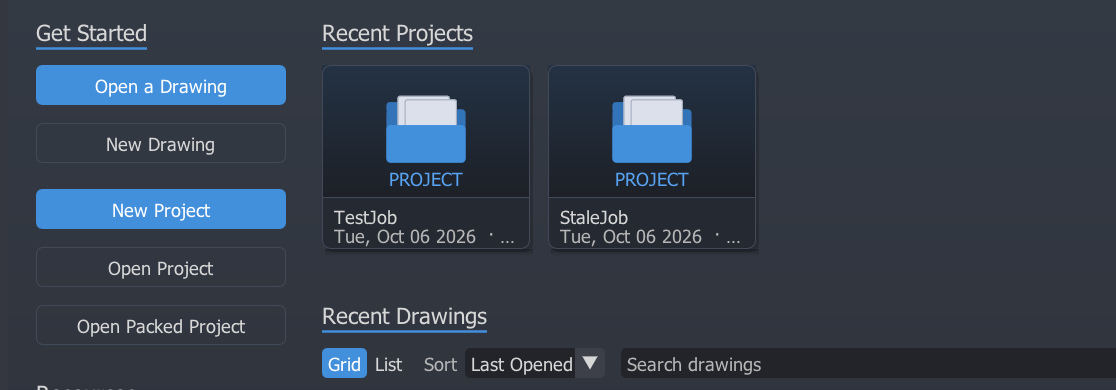

Recent Projects and the project workspace with shared survey points.

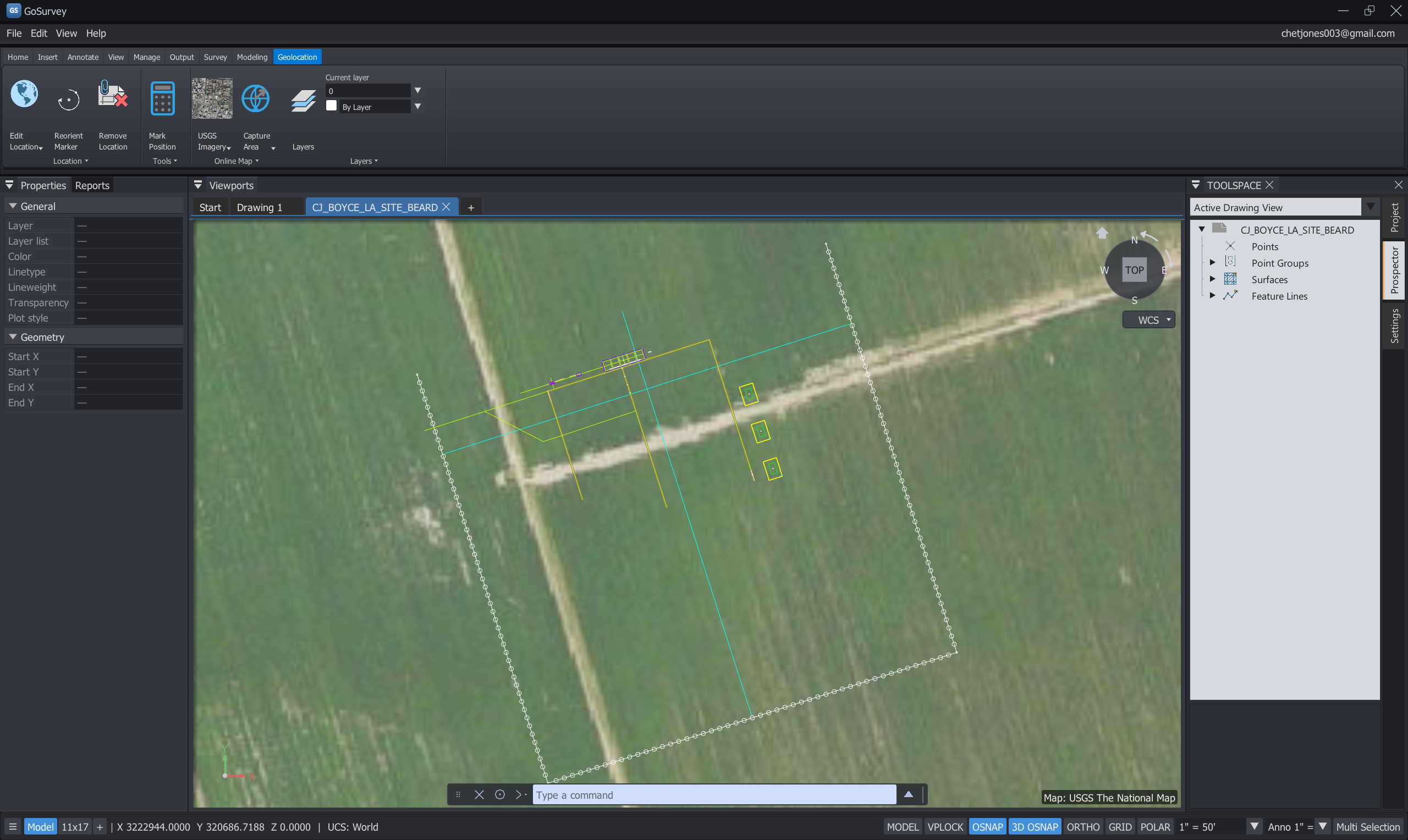

Drawing with coordinate zone and USGS aerial map underlay.

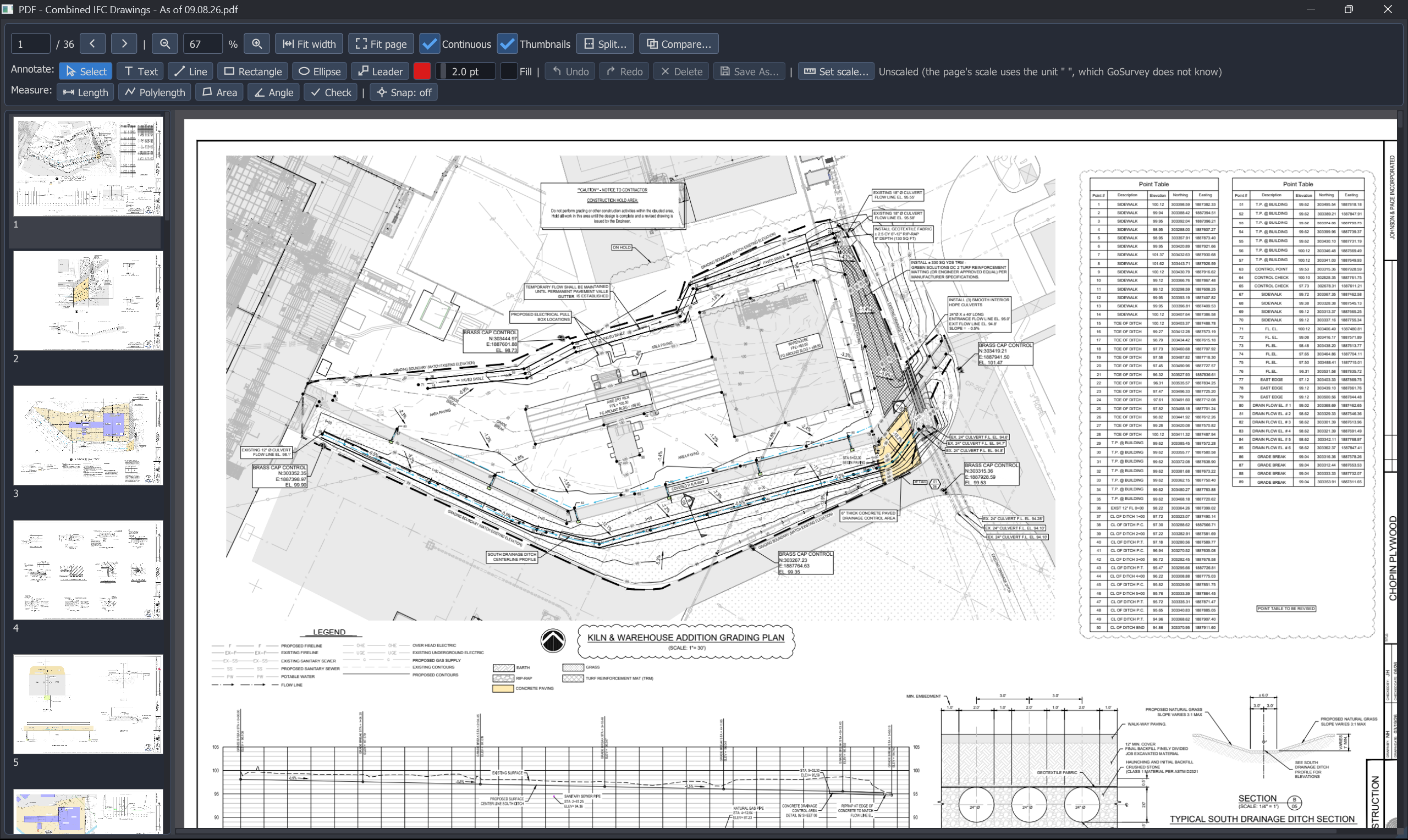

PDF viewer with markup and measure tools on a plan sheet.

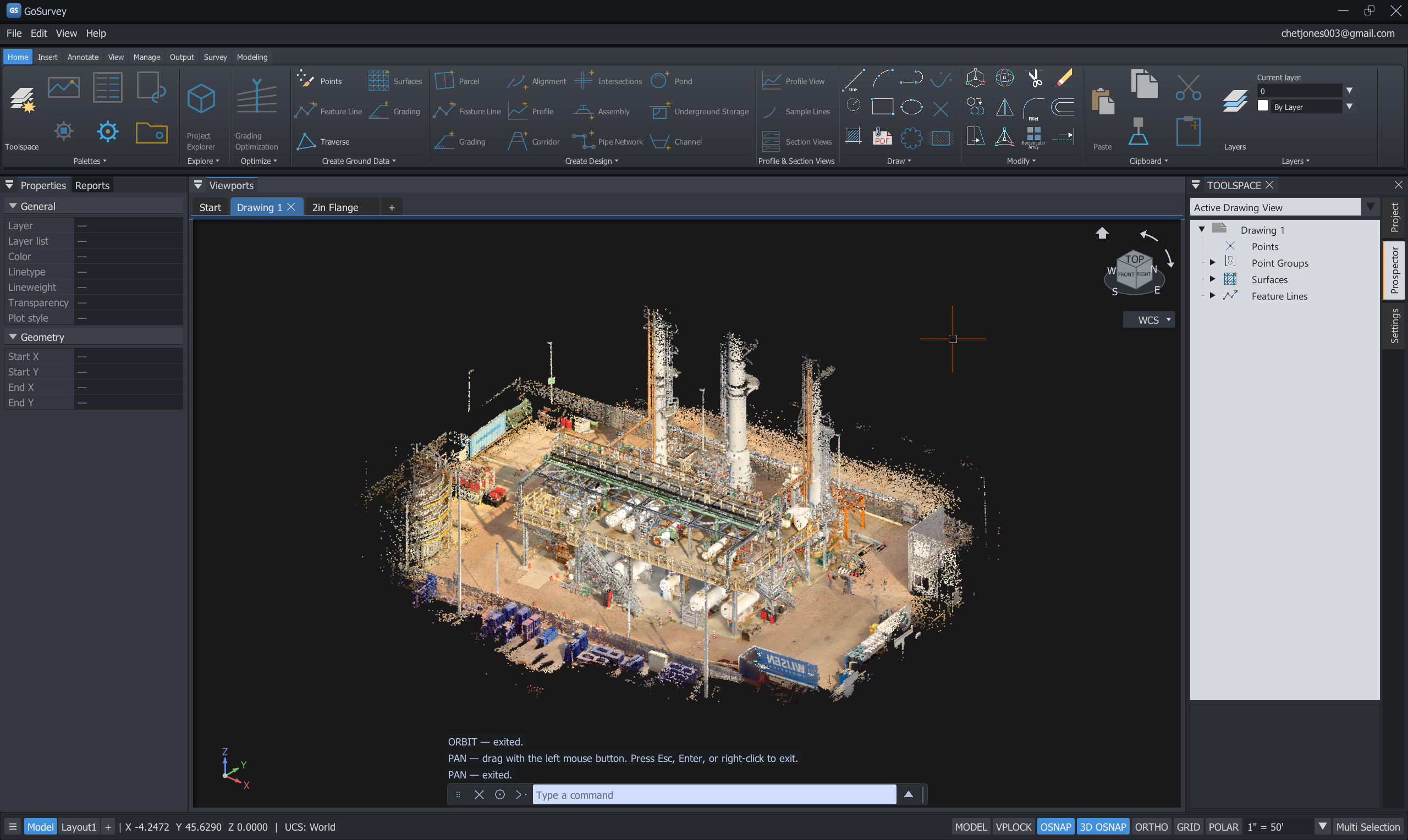

Point cloud displayed with linework in the model view.

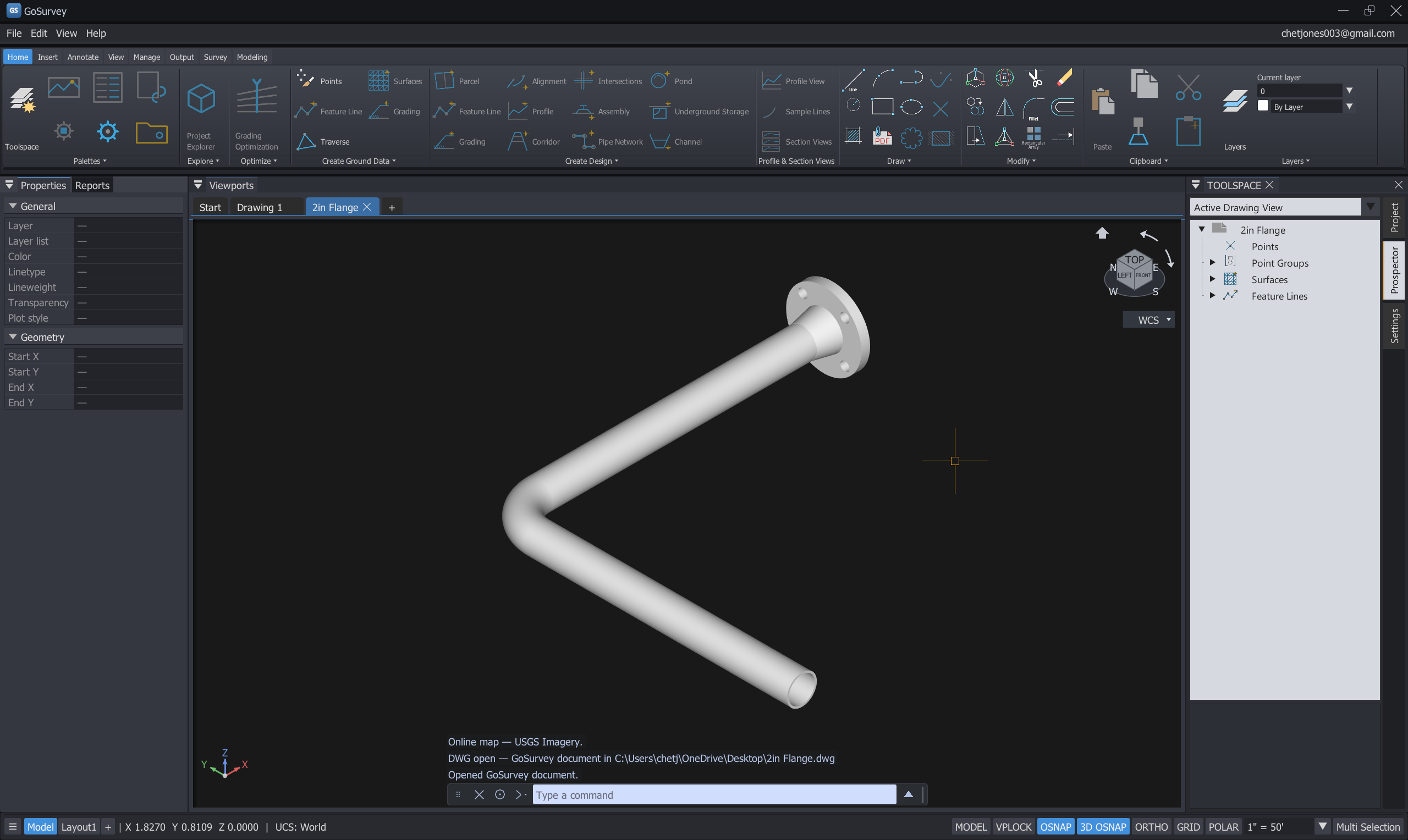

Pipe run with fittings from the library in 3D or plan view.

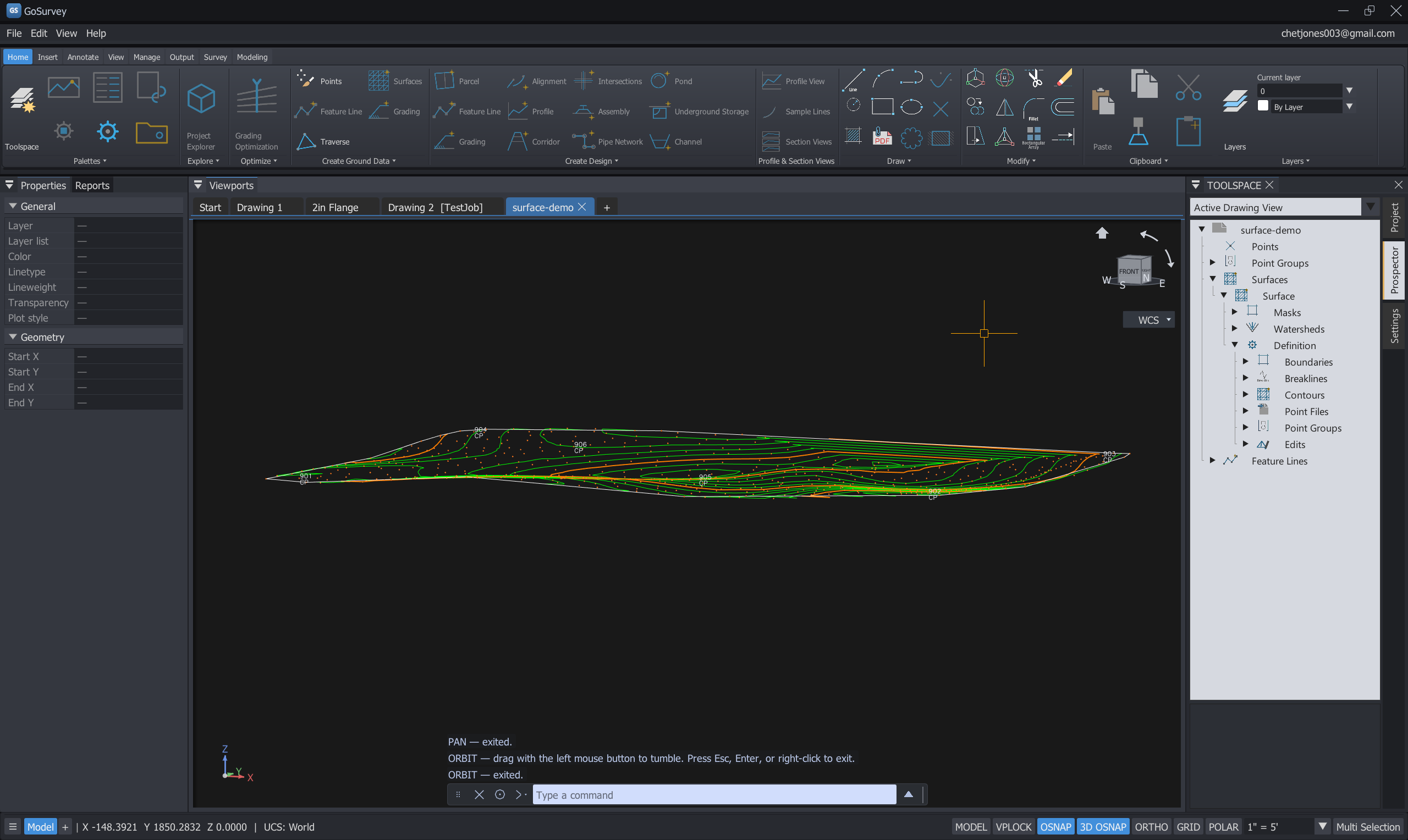

TIN surface, grading daylight line, or pad solid on existing ground.

1 / 6

Download

Windows x64. Free to install.

Once installed, GoSurvey checks for new versions itself and asks before installing anything. Choose your channel in Settings → System → Updates.

Stable

Recommended

Tested releases. This is the one to install if you are doing real work.

Version

—

Released

—

Size

—

Requires

Windows x64

Download installer Release notes

Windows may warn that the publisher is unrecognised — the installer is not code-signed yet. Choose More info → Run anyway. A SHA-256 checksum is published with every release.

Beta

Preview

The next release, published as it is built. Real working builds, but this is where problems are still being found — keep backups of drawings you care about.

Version

—

Released

—

Size

—

Requires

Windows x64

Download installer Release notes

Already running GoSurvey? Turn on Include beta releases in Settings instead of downloading by hand.

Getting started

Installed and drawing in a few minutes.

First

Install

Download the installer above and run it. GoSurvey installs to Program Files and adds a Start Menu entry. If it will not start, install the Microsoft Visual C++ Redistributable for x64.

Then

Set your units

Run UNITS once and pick the precision and bearing format you work in — surveyor's bearings, DMS or decimal. Every readout and label follows it.
